● Simultaneously detect the working condition of 6 injectors

● Detecting the tightness, dripping and injection quantity of the fuel injection nozzle

● Detection of fuel injection quantity and uniformity during variable speed and variable pulse width dynamic process

● Identify whether each injector is the same brand and the switching cycle is consistent

● Counting or timing, automatic or manual detection

● Reverse cleaning and no-fold cleaning (requires no-disassembly connector)

● Oil pump protection device

● Automatic oil return

● Observe the working condition of the injector through the imported backlight

● Fully automatic simulation and test of the whole process of various nozzles in normal injection, idle speed, medium speed, high speed and variable speed work

● Detection of idle speed, medium speed, high speed fuel injection quantity and uniformity, fuel injection angle and atomization state

● It is equipped with a universal test frame oil circuit device, and optional special model nozzle joints, which can be used to detect and clean the nozzles of all models at home and abroad.



Technical Parameters

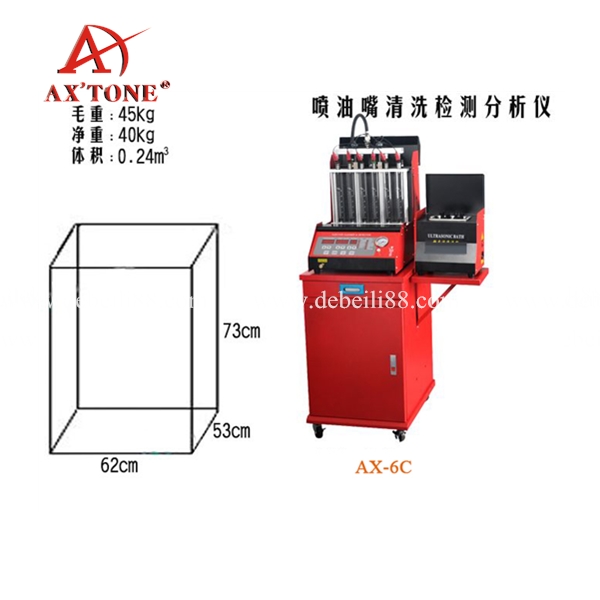

Model No.: AX-6C

Detection cylinder number: 6 cylinder

Power supply: AC220V / 50Hz, 110V / 60Hz

Fuel tank capacity: 4L

Test tube capacity: 120CC

Ultrasonic power: 75W

Ultrasonic frequency: 25KHz

Speed ​​range: 0—10000r / minStep: 50

Pulse width: 0-20ms Step: 0.1ms

Recording range: 0—10000 times Step: 50

Timing range: 0—10000se

Adjustable system pressure: 0-6.5kg

Weight: 45kg

Packing size: 580x490x730mm

Basic color: red
